Vendor: lenergizee

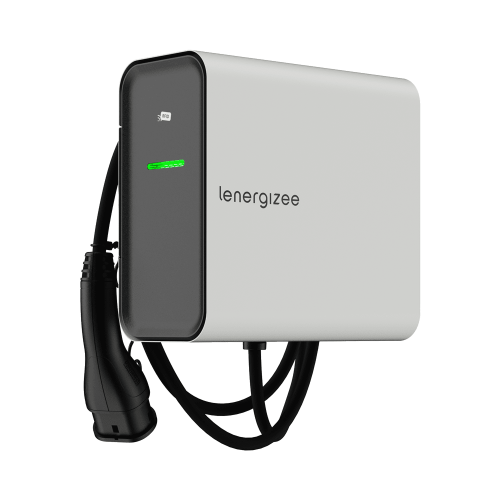

LENERGIZEE HOME IoT 22kW cable 5m white mat RAL9016

Rating:

Product code: 423550

Availability: temporarily unavailable

Price: €1,197.09 1197.09

Net price: €973.24

quantity pcs.

add to wish list

product unavailable

ask about product
add your review

Description

The Lenergizee IoT charger is a smart solution, enabling a wide range of functions such as: RFID card authentication or an intuitive dedicated web application. Possibility to add and remove RFID cards. Measurement of current consumption during charging. Creation of charging schedules with access to detailed statistics such as date, time, energy consumed and user name. Access to data and monitoring of the charging process via a web application. Possibility of direct connection to the device via WiFi. Two RFID cards are included, the user is left with the option of programming additional cards via the app.

Lenergizee IoT, with its advanced features, is widely used in a variety of locations and environments, such as:
Private Homes: Lenergizee IoT offers private home users the convenience of charging electric vehicles in the comfort of their home environment. It allows users to monitor energy consumption, set a charging schedule and access data via a web application, providing convenience and control over the charging process at home.

Garage Halls: In garage halls, Lenergizee IoT provides the ideal solution for ensuring secure charging after user authentication through charging authorisations.
Company Car Parks: Lenergizee IoT is ideal for corporate car parks to manage charging stations for a fleet of electric vehicles.
Electric Car Service/Dealers: For electric car service stations and dealers, Lenergizee IoT provides efficient charging stations, enabling management of the vehicle charging process in a professional environment.

The Lenergizee IoT offers advanced features to manage and control the charging process, making it a versatile solution for a variety of locations, including private homes, garage halls, company car parks, office complexes, hotels, electric car service and dealerships.
The charger is resistant to harsh weather conditions and can therefore be installed both indoors and outdoors.

Files to download:

Description

Technical data

Charging power [kW]	22.00
Electrical protection class	I
Material of the body	ABS, steel
Colour of the body	white RAL9016 matt
Impact resistance	IK10
Ingress protection	IP54
Mounting version	wall-mounted
Working temperature [°C]	from -20 to +45
Plug type	type 2
Wire type	type 2
Protection type	RCCB (residual current circuit breaker) type A. MCB (overcurrent) 32A 3P, surge protection SPD TYPE 2
CE certificate	11/2024
Frequency [Hz]	50-60
Warranty [years]	2
Number on the palette [pcs]	36
Cable length [m]	5.00
Gross weight [kg]	0
Net weight [kg]	6.900
Dimensions of single box [mm]	204/395/395
Dimensions (H/W/T/S) [mm]	290/300/190
Mounting dimensions [mm]	149/85
Surge protection [kV]	2
Version	Home IoT
Vandalproof	No
AC voltage range [V]	3 x 400
Socket type	no
Additional accessories	Leg, wall protection, anti-vandalism
The number of implement units	1
Charging mode	3
Number of phases	1 or 3
Rated current (A)	32
Maximum charging current: [A]	32
Cable type	simple
Cross-section of the power cable [mm2]	from 6 to 10
Charging cable cross-section [mm2]	5x6mm2
Number of connectors	1
Zintegrowany licznik energii	No
Zintegrowany licznik energii MID	No
Network layout	TN-TT (single-phase and three-phase)
EMC class	B (residential, business areas, commercial)
Charging power regulation	od 2.3 do 7.4 kW przy 1 faza <br> od 6.9 do 22kW przy 3 fazach (sieć TN)
Pomiar poboru mocy	No
Power consumption in standby [W]	2.00
Loading losses [%]	0.30
Overvoltage category	external protection required - TYPE II
Integrated security	protection against short circuit to ground. protection against the effects of interrupted communication between the car and the wallbox
Storage temperature [degrees C]	from -40 to +50
Communication lighting	LEDs in 3 colors: blue. green, red. Description in the manual.
Authorization	web application
Harmonogram ładowania	No
Management application	tak, webowa
Destiny	inwards, outwards
Blend color	black RAL 9005
The way of painting	powder
Type of housing finish	mat
Power cord entry	Stuffing box from below. Gland on the back wall.
Compliance with standards	LVD 2014/35/EU. 2014/30/EU, 2015/863/EU, 2014/53/EU, PN-EN IEC 61851-1: 2019-10, EN IEC 61851-1: 2019, PN-EN IEC 61851-21-2: 2021- -09, EN IEC 61851-21-2: 2021, PN-EN IEC 61439-7:2020:10, EN IEC 61439-7:2020, PN-EN IEC 62196-1: 2023-07, EN IEC 62196-1: 20
External security required	RCCB (residual current circuit breaker) type A. MCB (overcurrent) 16A 3P
Charging power	22kW 3 phases
Color	white RAL9016
Cable and plug type 2	Yes
Socket type 2	No
Socket 230 [V]	No
RFID authentication	Yes
Application authentication	Yes
Terminal box	No
Foundation	No
OCPP	No
Dynamic power balancing	No
Integrated energy meter MID	No
Dimensions [H/W/D]	290/300/190
Impact resistance	IK10
Type of housing finish	matt
Application	internal, external
Body material	Steel
Warranty [years]	2
