Vendor: lenergizee

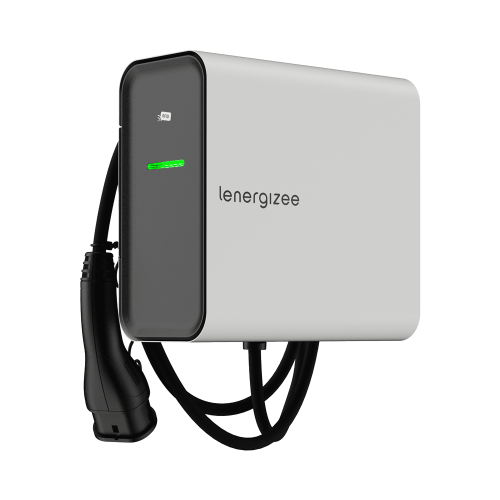

LENERGIZEE BUSINESS OCPP 7.4kW cable 5m white mat RAL9016

Rating:

Product code: 423697

Availability: running out

Dispatched within: 14 days

Delivery: The price does not include any possible payment costs check the delivery methods

Price: €1,860.48 1860.48

Net price: €1,512.58

quantity pcs.

add to wish list

product unavailable

ask about product
add your review

Description

The Lenergizee BUSINESS is equipped with the open communication protocol OCPP 1.6 J, which allows integration with various charging service operators. This allows for station management and electricity billing - this means that the device can be a public charging station within the meaning of the Electromobility and Alternative Fuels Act. An additional requirement is the registration and submission of data to the Alternative Fuels Infrastructure Register (EIPA) and the ongoing updating of station information, as required by the Act.

Lenergizee BUSINESS provides a comprehensive solution for charging electric vehicles in a variety of public and business locations, ensuring the safety, convenience, control and efficiency of the charging infrastructure. Intended use: corporate car parks, office complexes, hotels, restaurants, shops/retail facilities, ev car service/dealers, fitness clubs, offices, public places, charging station operators.

Files to download:

Description

Technical data

Charging power [kW]	7.40
Electrical protection class	I
Material of the body	ABS, steel
Colour of the body	white RAL9016 matt
Impact resistance	IK10
Ingress protection	IP54
Mounting version	wall-mounted
Working temperature [°C]	from -25 to +45
Plug type	type 2
Wire type	type 2
Protection type	RCCB (residual current circuit breaker) type A. MCB (overcurrent) 32A 1P, SPD overvoltage protection TYPE 2
CE certificate	20/2024
Frequency [Hz]	50-60
Warranty [years]	2
Number on the palette [pcs]	36
Cable length [m]	5.00
Gross weight [kg]	0
Net weight [kg]	6.600
Dimensions of single box [mm]	204/395/395
Dimensions (H/W/T/S) [mm]	290/300/190
Mounting dimensions [mm]	149/85
Surge protection [kV]	2
Version	BUSINESS OCPP
Vandalproof	No
AC voltage range [V]	230
Socket type	no
Additional accessories	Leg, wall protection, anti-vandalism
The number of implement units	1
Charging mode	3
Number of phases	1
Cable type	simple
Cross-section of the power cable [mm2]	from 6 to 10
Charging cable cross-section [mm2]	5x6mm2
Zintegrowany licznik energii	No
Zintegrowany licznik energii MID	No
Network layout	TN-TT (single-phase and three-phase)
EMC class	B (residential, business areas, commercial)
Pomiar poboru mocy	No
Overvoltage category	external protection required - TYPE II
Zintegrowane urządzenia ochronne	protection against DC current leakage ≤ 6mA
Integrated security	protection against short circuit to ground. protection against the effects of interrupted communication between the car and the wallbox
Storage temperature [degrees C]	from -40 to +50
Communication lighting	LEDs in 3 colors: blue. green, red. Description in the manual.
Authorization	RFID
Harmonogram ładowania	No
Management application	no
Destiny	inwards, outwards
Blend color	black RAL 9005
The way of painting	powder
Type of housing finish	mat
Power cord entry	Stuffing box from below. Gland on the back wall.
Compliance with standards	LVD 2014/35/EU. 2014/30/EU, 2015/863/EU, 2014/53/EU, PN-EN IEC 61851-1: 2019-10, EN IEC 61851-1: 2019, PN-EN IEC 61851-21-2: 2021- -09, EN IEC 61851-21-2: 2021, PN-EN IEC 61439-7:2020:10, EN IEC 61439-7:2020, PN-EN IEC 62196-1: 2023-07, EN IEC 62196-1: 20
External security required	RCCB (residual current circuit breaker) type A. MCB (overcurrent) 16A 3P
Charging power	7,4kW 1 phase
Color	white RAL9016
Cable and plug type 2	No
Socket type 2	No
Socket 230 [V]	No
RFID authentication	Yes
Application authentication	No
Terminal box	No
Foundation	No
OCPP	Yes
Dynamic power balancing	No
Integrated energy meter MID	No
Dimensions [H/W/D]	290/300/190
Impact resistance	IK10
Type of housing finish	matt
Application	internal, external
Body material	Steel
Warranty [years]	2
