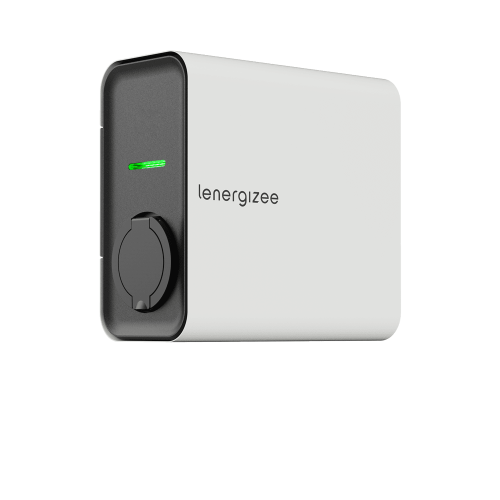

LENERGIZEE HOME BASIC 11kW socket white mat RAL9016 + socket 230V
5
product unavailable
Description
The Lenergizee HOME BASIC charger has been designed with simplicity in mind, allowing the charging process to start automatically when the cable is plugged into the car - a Plug & Charge solution. Thanks to its intuitive operation, using this model is extremely easy. In addition, the 11 kW version includes a 230 V socket for powering domestic appliances such as a hoover in the garage, bicycles or electric scooters.
This is not only a practical device, but also an element that supports sustainable development by promoting eco-friendly transport solutions. For users wishing to charge their car at home, this is a key device, facilitating the free use of electric vehicles, enabling comfortable and efficient charging in their own garage or on their property.
The Lenergizee Home charger has been developed with home users in mind, offering convenient charging of electric vehicles in the comfort of the home environment. It is ideal for EV owners who want easy access to charging. With Lenergizee Home, users can charge their EVs conveniently, eliminating the need for frequent visits to charging stations. This saves time and allows the vehicle to be charged while stationary, especially during a night's rest. Purpose: private homes and enclosed spaces. The charger is resistant to harsh weather conditions and can therefore be installed both indoors and outdoors.
Description
Technical data
| Charging power [kW] | 11.00 |
| Electrical protection class | I |
| Material of the body | ABS, steel |
| Colour of the body | white RAL9016 matt |
| Impact resistance | IK10 |
| Ingress protection | IP54 |
| Mounting version | wall-mounted |
| Working temperature [°C] | from -40 to +50 |
| Plug type | type 2 |
| Wire type | no |
| Protection type | RCCB (residual current circuit breaker) type A. MCB (overcurrent) 16A 3P. SPD overvoltage protection TYPE 2 (not included) |
| CE certificate | 11/2024 |
| Frequency [Hz] | 50-60 |
| Warranty [years] | 2 |
| Sockets | 1 |
| Number on the palette [pcs] | 36 |
| Gross weight [kg] | 0 |
| Net weight [kg] | 4.700 |
| Dimensions of single box [mm] | 204/395/395 |
| Dimensions (H/W/T/S) [mm] | 290/300/190 |
| Mounting dimensions [mm] | 149/85 |
| Surge protection [kV] | 2 |
| Version | Home Basic |
| Vandalproof | No |
| AC voltage range [V] | 3 x 400 |
| Socket type | type 2 |
| Additional accessories | Leg, wall protection, anti-vandalism |
| The number of implement units | 1 |
| Charging mode | 3 |
| Number of phases | 1 or 3 |
| Rated current (A) | 16 |
| Maximum charging current: [A] | 16 |
| Cross-section of the power cable [mm2] | from 6 to 10 |
| Number of connectors | 1 |
| Zintegrowany licznik energii | No |
| Zintegrowany licznik energii MID | No |
| Network layout | TN-TT (single-phase and three-phase) |
| EMC class | B (residential, business areas, commercial) |
| Charging power regulation | od 2.3 do 3.6 kW przy 1 faza <br> od 6.9 do 11kW przy 3 fazach (sieć TN) |
| Pomiar poboru mocy | No |
| Power consumption in standby [W] | 2.00 |
| Loading losses [%] | 0.30 |
| Overvoltage category | external protection required - TYPE II |
| Zintegrowane urządzenia ochronne | protection against DC current leakage ≤ 6mA |
| Integrated security | protection against short circuit to earth. protection against the effects of breakage communication |
| Storage temperature [degrees C] | from -40 to +50 |
| Communication lighting | LEDs in 3 colors: blue. green, red. Description in the manual. |
| Authorization | no |
| Harmonogram ładowania | No |
| Management application | no |
| Destiny | inwards, outwards |
| Blend color | black RAL 9005 |
| The way of painting | powder |
| Type of housing finish | mat |
| Power cord entry | Stuffing box from below. Gland on the back wall. |
| Compliance with standards | LVD 2014/35/EU. 2014/30/EU, 2015/863/EU, 2014/53/EU, PN-EN IEC 61851-1: 2019-10, EN IEC 61851-1: 2019, PN-EN IEC 61851-21-2: 2021- -09, EN IEC 61851-21-2: 2021, PN-EN IEC 61439-7:2020:10, EN IEC 61439-7:2020, PN-EN IEC 62196-1: 2023-07, EN IEC 62196-1: 20 |
| External security required | RCCB (residual current circuit breaker) type A. MCB (overcurrent) 16A 3P |
| Charging power | 11kW 3 phases |
| Color | white RAL9016 |
| Cable and plug type 2 | No |
| Socket type 2 | Yes |
| Socket 230 [V] | Yes |
| RFID authentication | No |
| Application authentication | No |
| Terminal box | No |
| Foundation | No |
| OCPP | No |
| Dynamic power balancing | No |
| Integrated energy meter MID | No |
| Dimensions [H/W/D] | 290/300/190 |
| Impact resistance | IK10 |
| Type of housing finish | matt |
| Application | internal, external |
| Body material | Steel |
| Warranty [years] | 2 |
