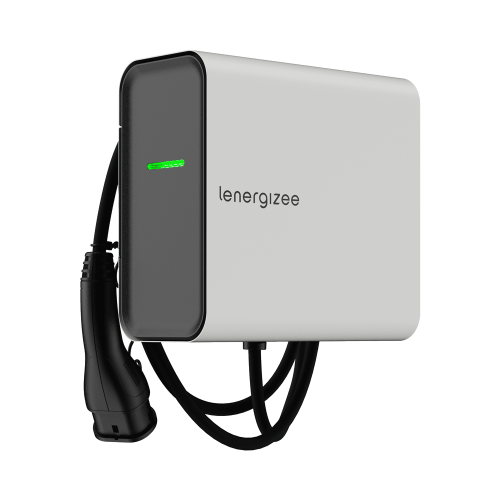

LENERGIZEE HOME BASIC 11kW cable 5m white mat RAL9016
0
product unavailable
Description
The Lenergizee HOME BASIC charger has been designed with simplicity in mind, allowing the charging process to start automatically when the cable is plugged into the car - a Plug & Charge solution. Thanks to its intuitive operation, using this model is extremely easy.
It is not only a practical device, but also an element supporting sustainable development by promoting eco-friendly transport solutions. For users wishing to charge their car at home, this is a key device, facilitating the free use of electric vehicles, enabling them to charge comfortably and efficiently in their own garage or on their property.
The Lenergizee Home charger has been developed with home users in mind, offering convenient charging of electric vehicles in the comfort of the home environment. It is ideal for EV owners who want easy access to charging. With Lenergizee Home, users can charge their EVs conveniently, eliminating the need for frequent visits to charging stations. This saves time and allows the vehicle to be charged while stationary, especially during a night's rest. Purpose: private homes and enclosed spaces. The charger is resistant to harsh weather conditions and can therefore be installed both indoors and outdoors.
Description
The Lenergizee HOME BASIC charger has been designed with simplicity in mind, allowing the charging process to start automatically when the cable is connected. Thanks to its intuitive operation, using this model is extremely easy. In addition, this version features a 230-volt socket and a power output ranging from 7.4 to 11 kW, enabling efficient charging of bicycles, scooters or connecting a hoover in the garage. This is not only a practical device, but also an element that supports a sustainable lifestyle by promoting eco-friendly transport solutions. For homes, it is a key device for facilitating the use of electric vehicles in everyday life, enabling comfortable and efficient charging in your own garage.
The Lenergizee Home charger has been developed with home users in mind, offering convenient and efficient charging of electric vehicles in the comfort of the home. It is ideal for EV owners who want easy access to charging in their own home. With Lenergizee Home, users can charge their electric vehicles in a convenient way, eliminating the need for frequent visits to charging stations. This saves time and provides convenience by allowing the vehicle to be charged while it is parked at home, especially during a night's rest.
Purpose: private homes.
Technical data
| Charging power [kW] | 11.00 |
| Electrical protection class | I |
| Material of the body | ABS, steel |
| Colour of the body | white RAL9016 matt |
| Impact resistance | IK10 |
| Ingress protection | IP54 |
| Mounting version | wall-mounted |
| Working temperature [°C] | from -40 to +50 |
| Plug type | type 2 |
| Wire type | type 2 |
| Protection type | RCCB (residual current circuit breaker) type A. MCB (overcurrent) 16A 3P. SPD overvoltage protection TYPE 2 (not included) |
| CE certificate | 11/2024 |
| Frequency [Hz] | 50-60 |
| Warranty [years] | 2 |
| Number on the palette [pcs] | 36 |
| Cable length [m] | 5.00 |
| Gross weight [kg] | 0 |
| Net weight [kg] | 6.000 |
| Dimensions of single box [mm] | 204/395/395 |
| Dimensions (H/W/T/S) [mm] | 290/300/190 |
| Mounting dimensions [mm] | 149/85 |
| Surge protection [kV] | 2 |
| Version | Home Basic |
| Vandalproof | No |
| AC voltage range [V] | 3 x 400 |
| Socket type | no |
| Additional accessories | Leg, wall protection, anti-vandalism |
| The number of implement units | 1 |
| Charging mode | 3 |
| Number of phases | 1 or 3 |
| Rated current (A) | 16 |
| Maximum charging current: [A] | 16 |
| Cable type | simple |
| Cross-section of the power cable [mm2] | from 6 to 10 |
| Charging cable cross-section [mm2] | 5x6mm2 |
| Number of connectors | 1 |
| Zintegrowany licznik energii | No |
| Zintegrowany licznik energii MID | No |
| Network layout | TN-TT (single-phase and three-phase) |
| EMC class | B (residential, business areas, commercial) |
| Charging power regulation | od 2.3 do 3.6 kW przy 1 faza <br> od 6.9 do 11kW przy 3 fazach (sieć TN) |
| Pomiar poboru mocy | No |
| Power consumption in standby [W] | 2.00 |
| Loading losses [%] | 0.30 |
| Overvoltage category | external protection required - TYPE II |
| Integrated security | protection against short circuit to ground. protection against the effects of interrupted communication between the car and the wallbox |
| Storage temperature [degrees C] | from -40 to +50 |
| Communication lighting | LEDs in 3 colors: blue. green, red. Description in the manual. |
| Authorization | no |
| Harmonogram ładowania | No |
| Management application | no |
| Destiny | inwards, outwards |
| Blend color | black RAL 9005 |
| The way of painting | powder |
| Type of housing finish | mat |
| Power cord entry | Stuffing box from below. Gland on the back wall. |
| Compliance with standards | LVD 2014/35/EU. 2014/30/EU, 2015/863/EU, 2014/53/EU, PN-EN IEC 61851-1: 2019-10, EN IEC 61851-1: 2019, PN-EN IEC 61851-21-2: 2021- -09, EN IEC 61851-21-2: 2021, PN-EN IEC 61439-7:2020:10, EN IEC 61439-7:2020, PN-EN IEC 62196-1: 2023-07, EN IEC 62196-1: 20 |
| External security required | RCCB (residual current circuit breaker) type A. MCB (overcurrent) 16A 3P |
| Charging power | 11kW 3 phases |
| Color | white RAL9016 |
| Cable and plug type 2 | Yes |
| Socket type 2 | No |
| Socket 230 [V] | No |
| RFID authentication | No |
| Application authentication | No |
| Terminal box | No |
| Foundation | No |
| OCPP | No |
| Dynamic power balancing | No |
| Integrated energy meter MID | No |
| Dimensions [H/W/D] | 290/300/190 |
| Impact resistance | IK10 |
| Type of housing finish | matt |
| Application | internal, external |
| Body material | Steel |
| Warranty [years] | 2 |
