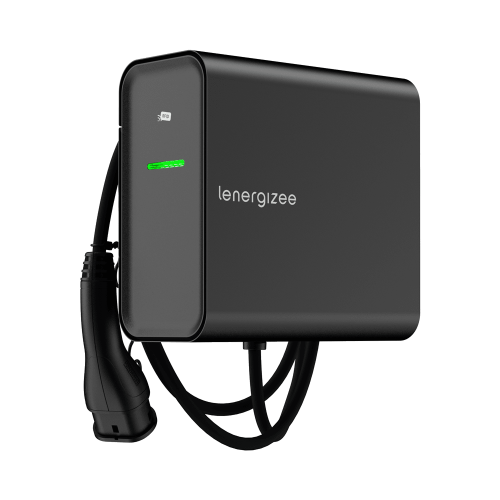

LENERGIZEE HOME RFID 7.4kW cable 5m black mat RAL9005
0
product unavailable
Description
The Lenergizee HOME RFID charger is equipped with a module for authorising the charging process with an RFID card. This version includes an integrated RFID module and 5 authorisation cards. The charging process starts automatically when the cable is connected and the RFID card is scanned, so it is very simple and intuitive, and additionally protects the charger from unwanted use by outsiders.
Lenergizee Home RFID offers convenience, reliability and simple operation, allowing electric vehicles to be charged in private homes and garage halls in an efficient, safe and customised way. The charger is resistant to harsh weather conditions and can therefore be installed both indoors and outdoors.
Description
Technical data
| Charging power [kW] | 7.40 |
| Electrical protection class | I |
| Material of the body | ABS, steel |
| Colour of the body | black RAL9005 matt |
| Impact resistance | IK10 |
| Ingress protection | IP54 |
| Mounting version | wall-mounted |
| Working temperature [°C] | from -40 to +50 |
| Plug type | type 2 |
| Wire type | type 2 |
| Protection type | RCCB (residual current circuit breaker) type A. MCB (overcurrent) 32A 1P, SPD overvoltage protection TYPE 2 |
| CE certificate | 11/2024 |
| Frequency [Hz] | 50-60 |
| Warranty [years] | 2 |
| Number on the palette [pcs] | 36 |
| Cable length [m] | 5.00 |
| Net weight [kg] | 6.000 |
| Dimensions of single box [mm] | 204/395/395 |
| Dimensions (H/W/T/S) [mm] | 290/300/190 |
| Mounting dimensions [mm] | 149/85 |
| Surge protection [kV] | 2 |
| Version | Home RFID |
| Vandalproof | No |
| AC voltage range [V] | 230 |
| Socket type | no |
| Additional accessories | Leg, wall protection, anti-vandalism |
| The number of implement units | 1 |
| Charging mode | 3 |
| Number of phases | 1 |
| Cable type | simple |
| Cross-section of the power cable [mm2] | from 6 to 10 |
| Charging cable cross-section [mm2] | 5x6mm2 |
| Zintegrowany licznik energii | No |
| Zintegrowany licznik energii MID | No |
| Network layout | TN-TT (single-phase and three-phase) |
| EMC class | B (residential, business areas, commercial) |
| Pomiar poboru mocy | No |
| Overvoltage category | external protection required - TYPE II |
| Zintegrowane urządzenia ochronne | protection against DC current leakage ≤ 6mA |
| Integrated security | protection against short circuit to ground. protection against the effects of interrupted communication between the car and the wallbox |
| Storage temperature [degrees C] | from -40 to +50 |
| Communication lighting | LEDs in 3 colors: blue. green, red. Description in the manual. |
| Authorization | RFID |
| Harmonogram ładowania | No |
| Management application | no |
| Destiny | inwards, outwards |
| Blend color | black RAL 9005 |
| The way of painting | powder |
| Type of housing finish | mat |
| Power cord entry | Stuffing box from below. Gland on the back wall. |
| Compliance with standards | LVD 2014/35/EU. 2014/30/EU, 2015/863/EU, 2014/53/EU, PN-EN IEC 61851-1: 2019-10, EN IEC 61851-1: 2019, PN-EN IEC 61851-21-2: 2021- -09, EN IEC 61851-21-2: 2021, PN-EN IEC 61439-7:2020:10, EN IEC 61439-7:2020, PN-EN IEC 62196-1: 2023-07, EN IEC 62196-1: 20 |
| External security required | RCCB (residual current circuit breaker) type A. MCB (overcurrent) 16A 3P |
| Charging power | 7,4kW 1 phase |
| Color | black RAL9005 |
| Cable and plug type 2 | Yes |
| Socket type 2 | No |
| Socket 230 [V] | No |
| RFID authentication | Yes |
| Application authentication | No |
| Terminal box | No |
| Foundation | No |
| OCPP | No |
| Dynamic power balancing | No |
| Integrated energy meter MID | No |
| Dimensions [H/W/D] | 290/300/190 |
| Impact resistance | IK10 |
| Type of housing finish | matt |
| Application | internal, external |
| Body material | Steel |
| Warranty [years] | 2 |
