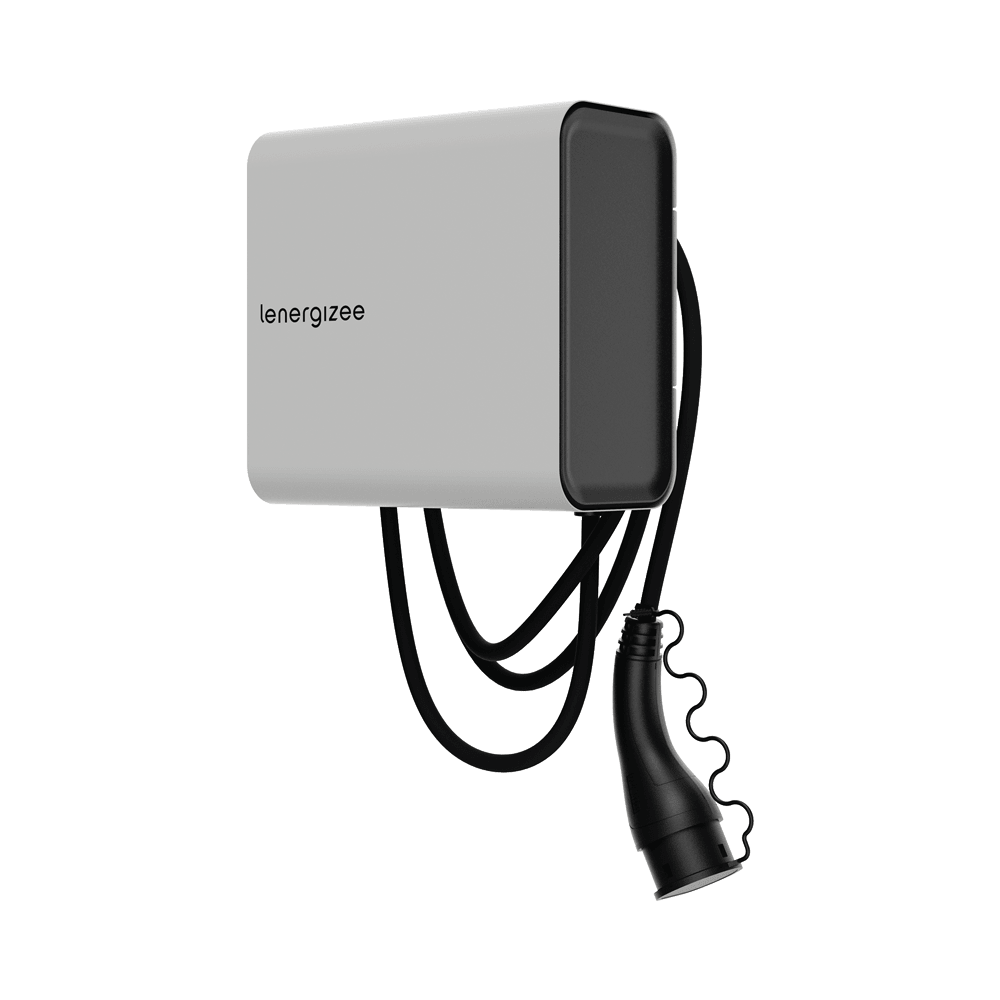

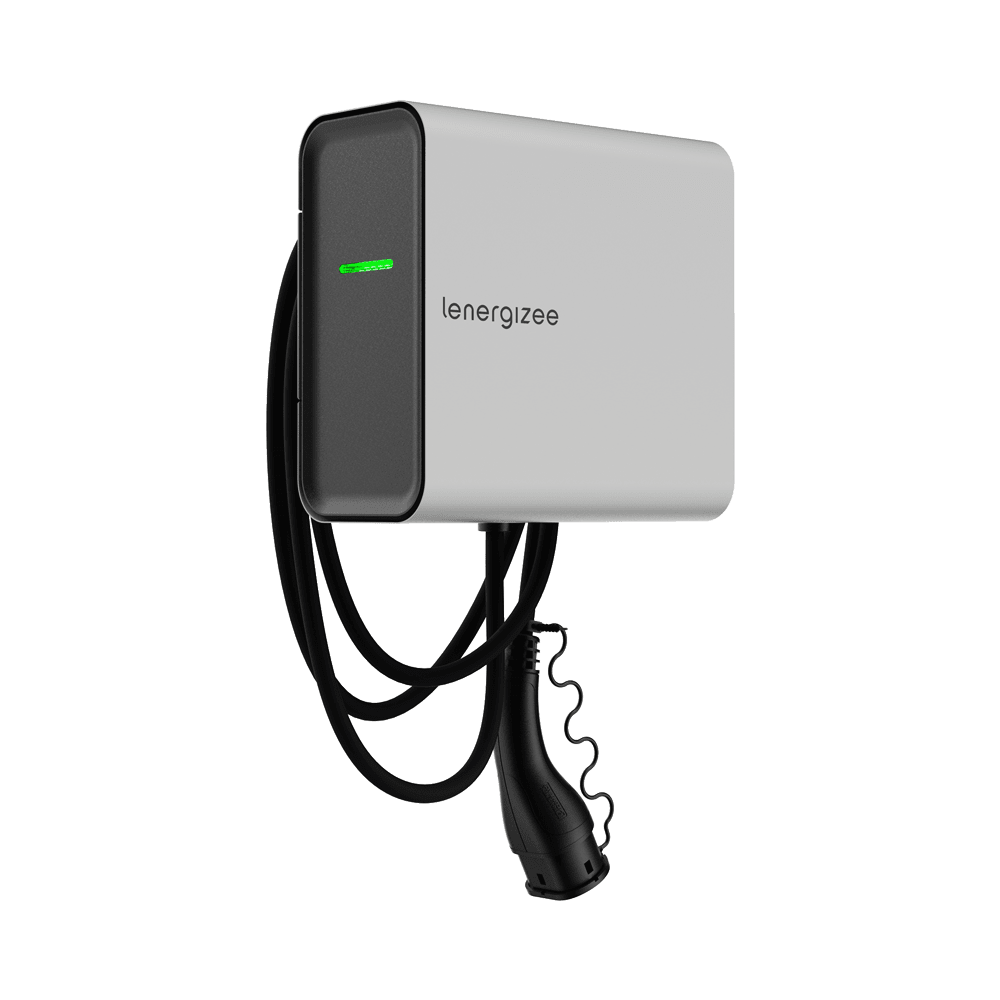

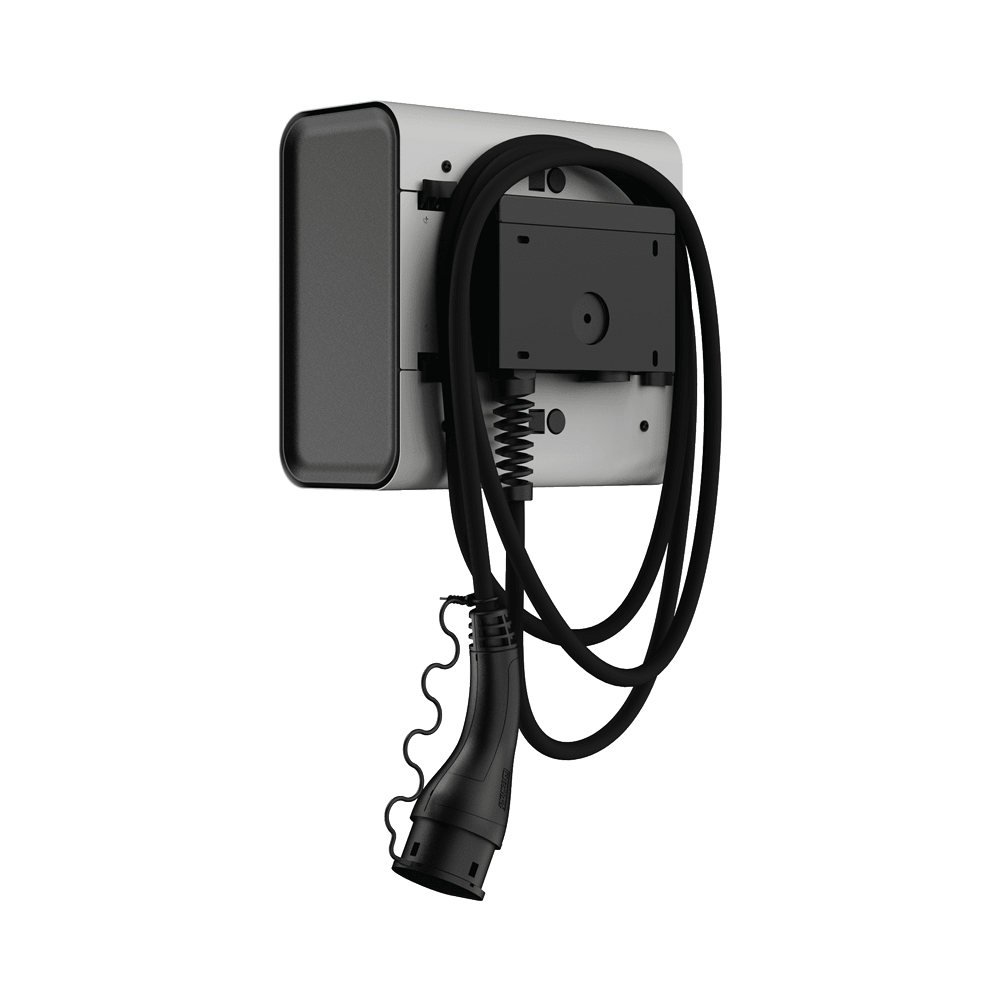

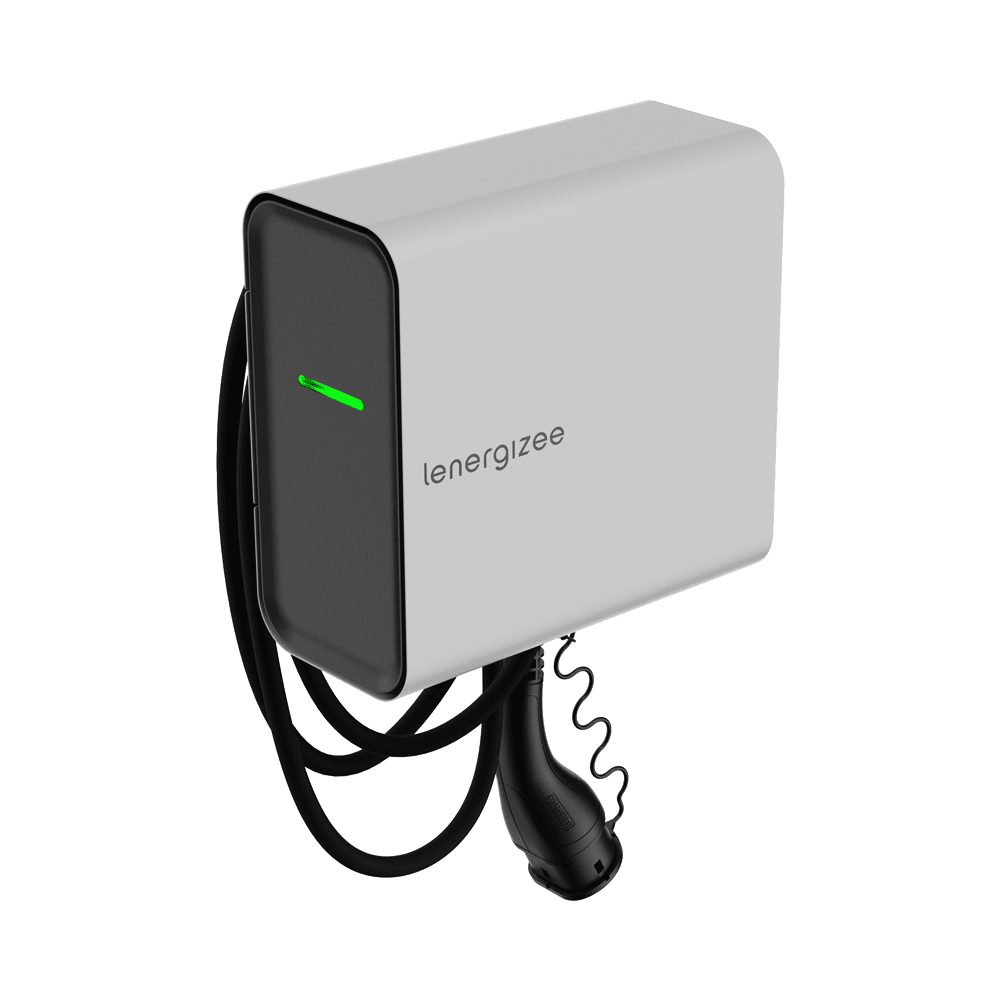

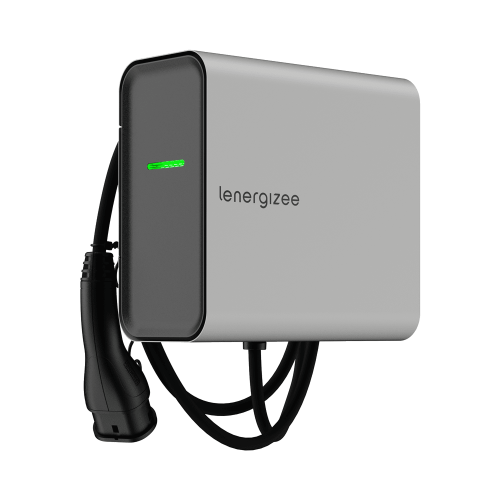

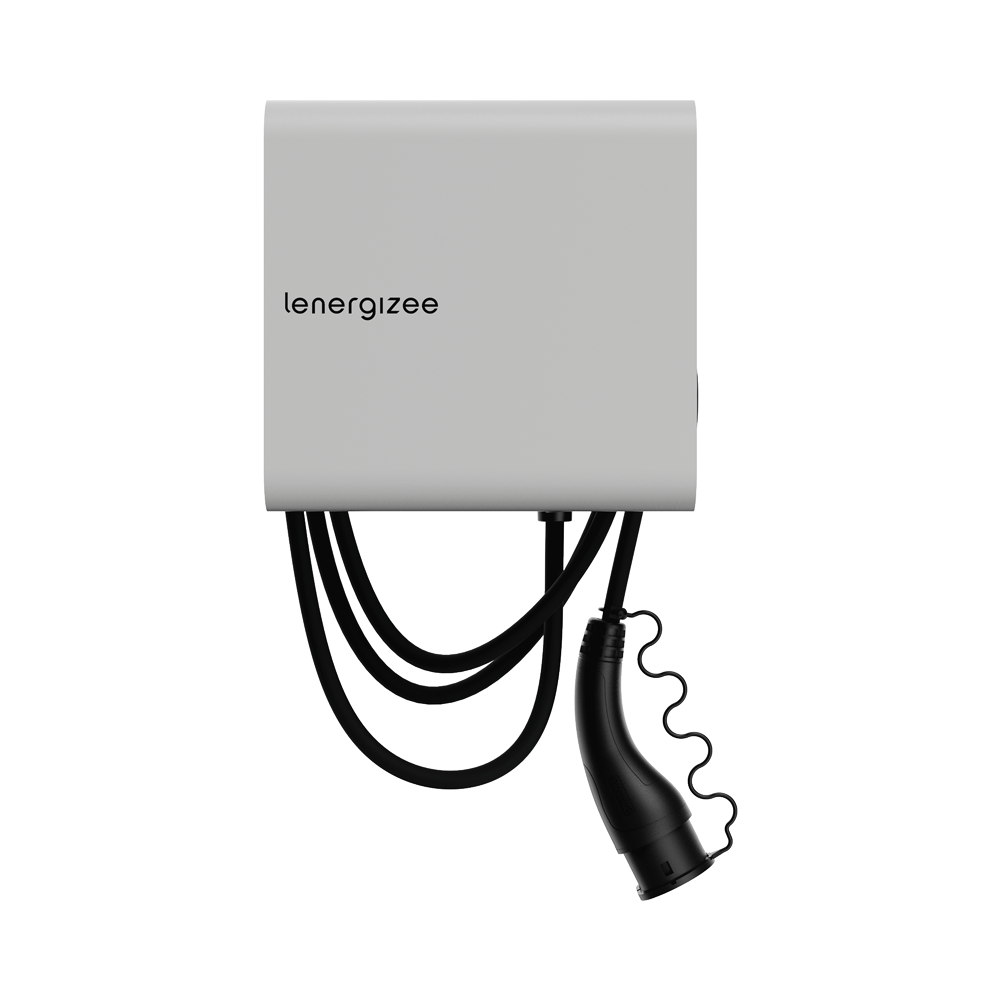

LENERGIZEE HOME BASIC 22kW cable 5m grey mat RAL7047

Rating:

Product code: 422072

Availability: running out

Dispatched within: 3 days

Delivery: The price does not include any possible payment costs check the delivery methods

Price: €534.19 534.19

Net price: €434.30

quantity pcs.

add to wish list

product unavailable

ask about product
add your review

Description

The Lenergizee HOME BASIC charger has been designed with simplicity in mind, allowing the charging process to start automatically when the cable is plugged into the car - a Plug & Charge solution. Thanks to its intuitive operation, using this model is extremely easy.

It is not only a practical device, but also an element supporting sustainable development by promoting eco-friendly transport solutions. For users wishing to charge their car at home, this is a key device, facilitating the free use of electric vehicles, enabling them to charge comfortably and efficiently in their own garage or on their property.

The Lenergizee Home charger has been developed with home users in mind, offering convenient charging of electric vehicles in the comfort of the home environment. It is ideal for EV owners who want easy access to charging. With Lenergizee Home, users can charge their EVs conveniently, eliminating the need for frequent visits to charging stations. This saves time and allows the vehicle to be charged while stationary, especially during a night's rest. Purpose: private homes and enclosed spaces. The charger is resistant to harsh weather conditions and can therefore be installed both indoors and outdoors.

Files to download:

Description

Technical data

Charging power [kW]	22.00
Electrical protection class	I
Material of the body	ABS, steel
Colour of the body	gray RAL7047 matt
Impact resistance	IK10
Ingress protection	IP54
Mounting version	wall-mounted
Working temperature [°C]	from -40 to +50
Plug type	type 2
Wire type	type 2
Protection type	RCCB (residual current circuit breaker) type A. MCB (overcurrent) 32A 3P, surge protection SPD TYPE 2
CE certificate	11/2024
Frequency [Hz]	50-60
Warranty [years]	2
Number on the palette [pcs]	36
Cable length [m]	5.00
Gross weight [kg]	0
Net weight [kg]	6.000
Dimensions of single box [mm]	204/395/395
Dimensions (H/W/T/S) [mm]	290/300/190
Mounting dimensions [mm]	149/85
Surge protection [kV]	2
Version	Home Basic
Vandalproof	No
AC voltage range [V]	3 x 400
Socket type	no
Additional accessories	Leg, wall protection, anti-vandalism
The number of implement units	1
Charging mode	3
Number of phases	1 or 3
Rated current (A)	32
Maximum charging current: [A]	32
Cable type	simple
Cross-section of the power cable [mm2]	from 6 to 10
Charging cable cross-section [mm2]	5x6mm2
Number of connectors	1
Zintegrowany licznik energii	No
Zintegrowany licznik energii MID	No
Network layout	TN-TT (single-phase and three-phase)
EMC class	B (residential, business areas, commercial)
Charging power regulation	od 2.3 do 7.4 kW przy 1 faza <br> od 6.9 do 22kW przy 3 fazach (sieć TN)
Pomiar poboru mocy	No
Power consumption in standby [W]	2.00
Loading losses [%]	0.30
Overvoltage category	external protection required - TYPE II
Integrated security	protection against short circuit to ground. protection against the effects of interrupted communication between the car and the wallbox
Storage temperature [degrees C]	from -40 to +50
Communication lighting	LEDs in 3 colors: blue. green, red. Description in the manual.
Authorization	no
Harmonogram ładowania	No
Management application	no
Destiny	inwards, outwards
Blend color	black RAL 9005
The way of painting	powder
Type of housing finish	mat
Power cord entry	Stuffing box from below. Gland on the back wall.
Compliance with standards	LVD 2014/35/EU. 2014/30/EU, 2015/863/EU, 2014/53/EU, PN-EN IEC 61851-1: 2019-10, EN IEC 61851-1: 2019, PN-EN IEC 61851-21-2: 2021- -09, EN IEC 61851-21-2: 2021, PN-EN IEC 61439-7:2020:10, EN IEC 61439-7:2020, PN-EN IEC 62196-1: 2023-07, EN IEC 62196-1: 20
External security required	RCCB (residual current circuit breaker) type A. MCB (overcurrent) 16A 3P
Charging power	22kW 3 phases
Color	grey RAL7047
Cable and plug type 2	Yes
Socket type 2	No
Socket 230 [V]	No
RFID authentication	No
Application authentication	No
Terminal box	No
Foundation	No
OCPP	No
Dynamic power balancing	No
Integrated energy meter MID	No
Dimensions [H/W/D]	290/300/190
Impact resistance	IK10
Type of housing finish	matt
Application	internal, external
Body material	Steel
Warranty [years]	2
