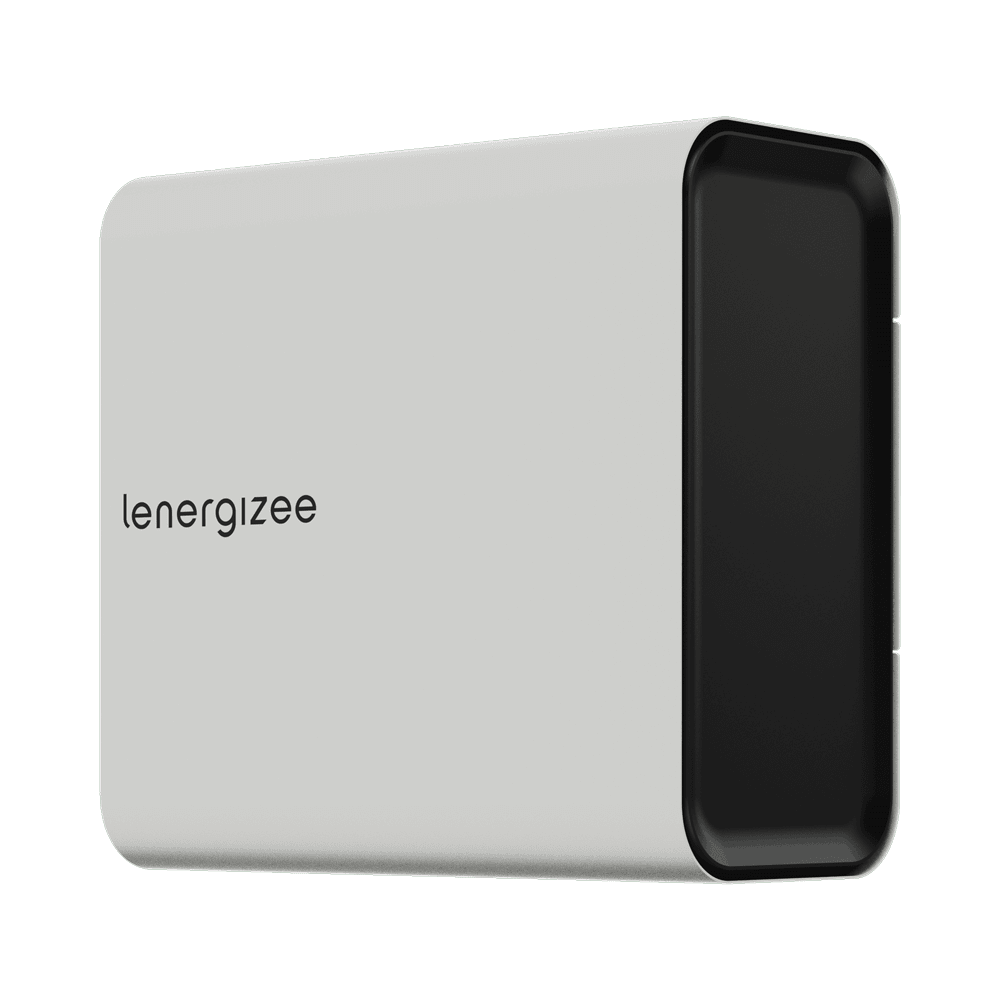

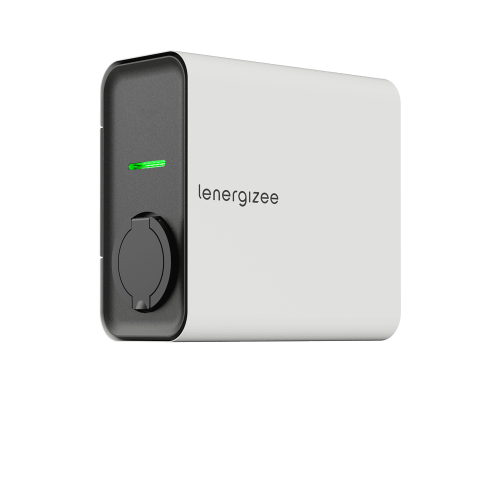

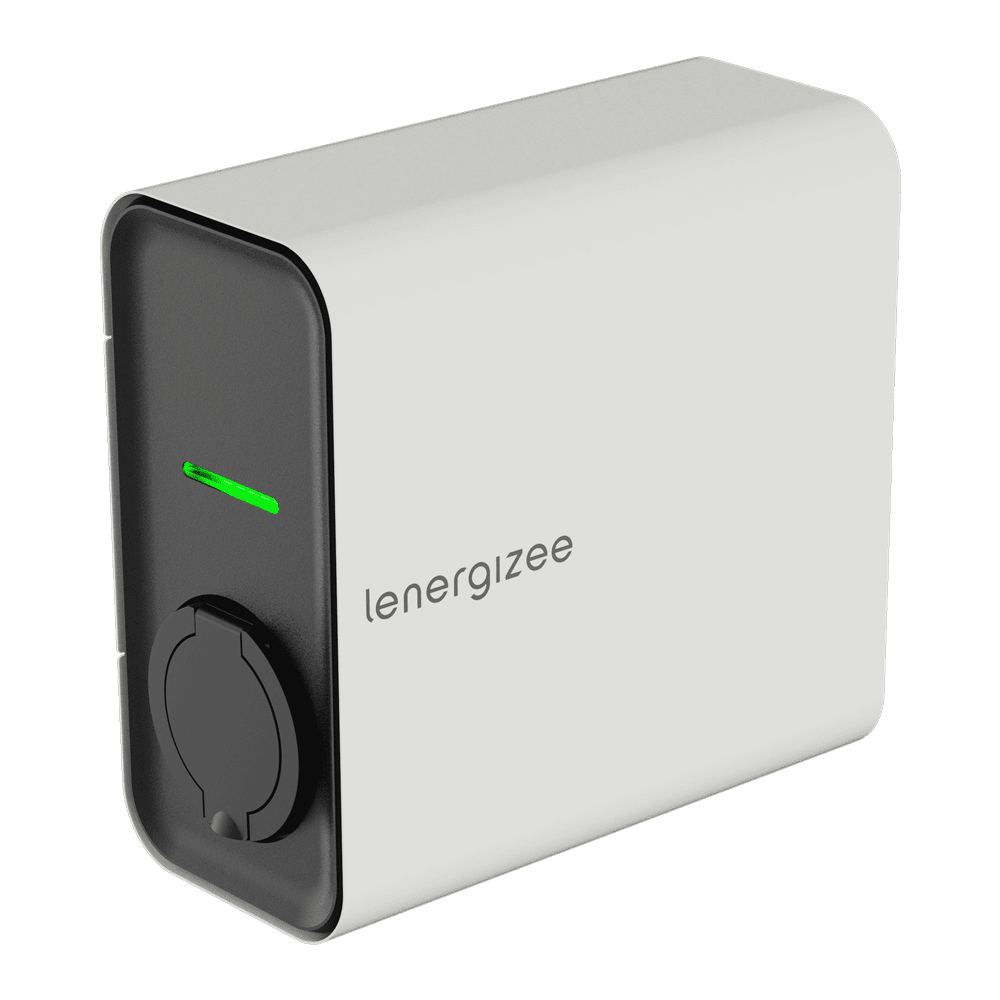

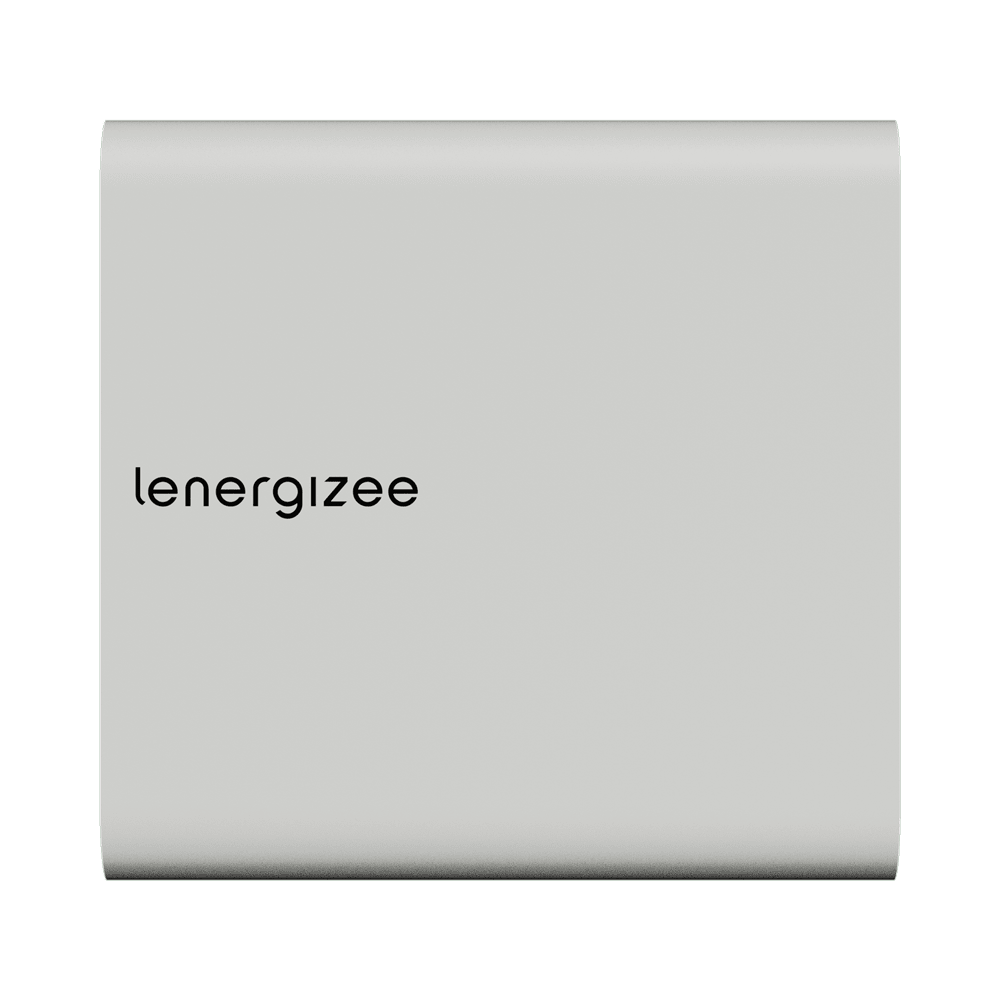

LENERGIZEE HOME CLUE 22kW socket white mat RAL9016

Rating:

Product code: 423604

Availability: temporarily unavailable

Price: €817.85 817.85

Net price: €664.92

quantity pcs.

add to wish list

product unavailable

ask about product
add your review

Description

The Lenegizee CLUE version is equipped with a control module that is compatible with the LL Clue lighting control system. The user has the option to manually switch the charging on/off via a dedicated app. The app also allows the user to set a charging schedule. This means that when the charging cable is plugged in, the user can choose whether the charger starts the charging process immediately or waits for a specific date/time. The CLUE version also offers a second form of authorisation via RFID cards, of which there are five included.

In addition to its use in private homes or garage halls, the Lenergizee CLUE charger has been designed for use in company car parks, at warehouses, etc. In company car parks, the Lenergizee CLUE provides the perfect solution for charging company electric vehicles. With authorisation functions via RFID card or the CLUE app, it enables charging access control, ensuring efficient management of the charging station on company premises. It is the ideal solution for logistics areas, enabling seamless charging of electric vehicles while working or performing logistics activities. This charger guarantees control, convenience and accessibility for electric fleet users. Purpose: private homes, garage halls, car parks at warehouses, company car parks.
The charger is resistant to harsh weather conditions and can therefore be installed both indoors and outdoors.

Files to download:

Description

Technical data

Charging power [kW]	22.00
Electrical protection class	I
Material of the body	ABS, steel
Colour of the body	white RAL9016 matt
Impact resistance	IK10
Ingress protection	IP54

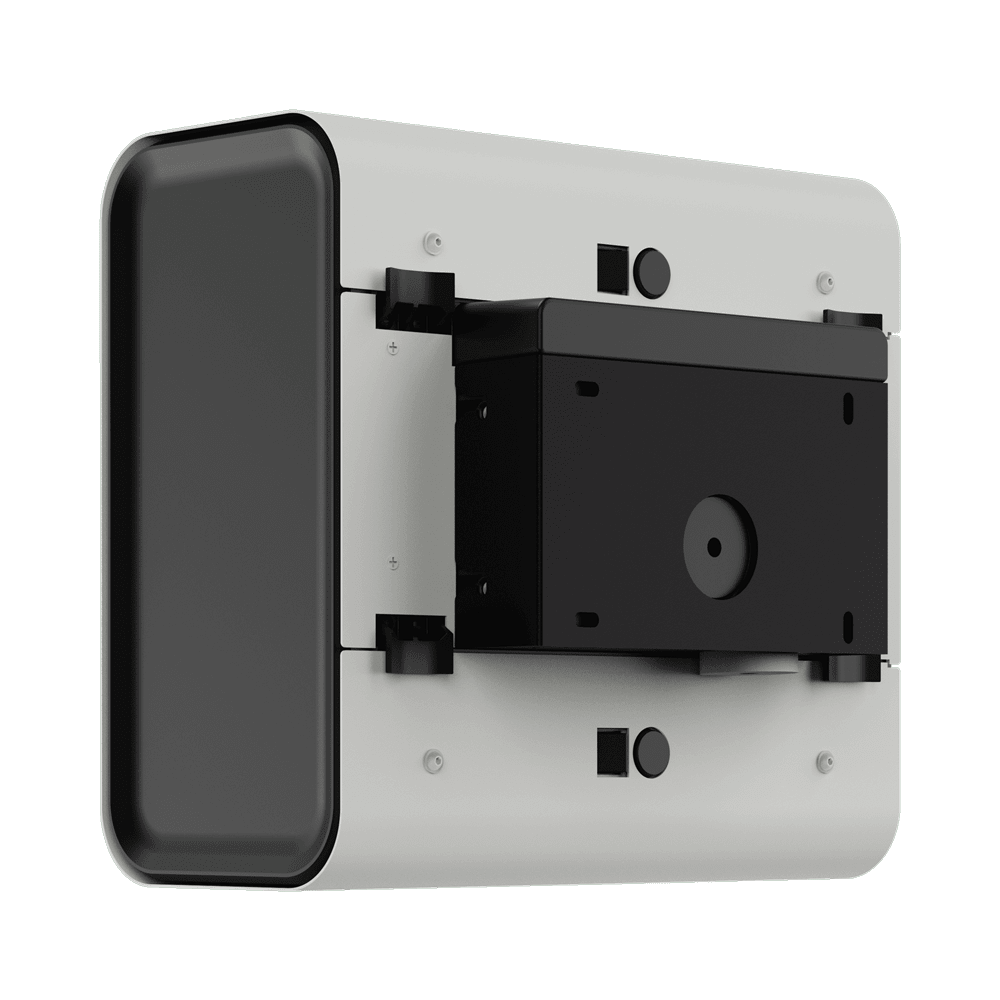

Mounting version	wall-mounted
Working temperature [°C]	from -20 to +45
Plug type	type 2
Wire type	no
Protection type	RCCB (residual current circuit breaker) type A. MCB (overcurrent) 32A 3P, surge protection SPD TYPE 2
CE certificate	11/2024
Frequency [Hz]	50-60
Warranty [years]	2
Sockets	1
Number on the palette [pcs]	36
Gross weight [kg]	0
Net weight [kg]	4.800
Dimensions of single box [mm]	204/395/395
Dimensions (H/W/T/S) [mm]	290/300/190
Mounting dimensions [mm]	149/85
Surge protection [kV]	2
Version	Home CLUE
Vandalproof	No
AC voltage range [V]	3 x 400
Socket type	type 2
Additional accessories	Leg, wall protection, anti-vandalism
The number of implement units	1
Charging mode	3
Number of phases	1 or 3
Rated current (A)	32
Maximum charging current: [A]	32
Cross-section of the power cable [mm2]	from 6 to 10
Number of connectors	1
Zintegrowany licznik energii	No
Zintegrowany licznik energii MID	No
Network layout	TN-TT (single-phase and three-phase)
EMC class	B (residential, business areas, commercial)
Charging power regulation	od 2.3 do 7.4 kW przy 1 faza <br> od 6.9 do 22kW przy 3 fazach (sieć TN)
Pomiar poboru mocy	No
Power consumption in standby [W]	2.00
Loading losses [%]	0.30
Overvoltage category	external protection required - TYPE II
Integrated security	protection against short circuit to ground. protection against the effects of interrupted communication between the car and the wallbox
Storage temperature [degrees C]	from -40 to +50
Communication lighting	LEDs in 3 colors: blue. green, red. Description in the manual.
Authorization	web application
Harmonogram ładowania	No
Management application	no
Destiny	inwards, outwards
Blend color	black RAL 9005
The way of painting	powder
Type of housing finish	mat
Power cord entry	Stuffing box from below. Gland on the back wall.
Compliance with standards	LVD 2014/35/EU. 2014/30/EU, 2015/863/EU, 2014/53/EU, PN-EN IEC 61851-1: 2019-10, EN IEC 61851-1: 2019, PN-EN IEC 61851-21-2: 2021- -09, EN IEC 61851-21-2: 2021, PN-EN IEC 61439-7:2020:10, EN IEC 61439-7:2020, PN-EN IEC 62196-1: 2023-07, EN IEC 62196-1: 20
External security required	RCCB (residual current circuit breaker) type A. MCB (overcurrent) 16A 3P
Charging power	22kW 3 phases
Color	white RAL9016
Cable and plug type 2	No
Socket type 2	Yes
Socket 230 [V]	No
RFID authentication	No
Application authentication	No
Terminal box	No
Foundation	No
OCPP	No
Dynamic power balancing	No
Integrated energy meter MID	No
Dimensions [H/W/D]	290/300/190
Impact resistance	IK10
Type of housing finish	matt
Application	internal, external
Body material	Steel
Warranty [years]	2
