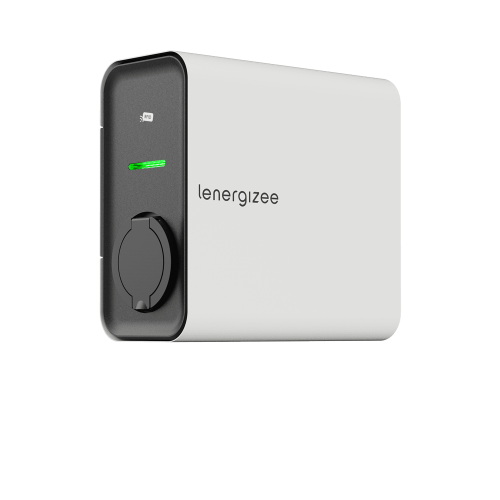

LENERGIZEE BUSINESS OCPP 22kW socket white mat RAL9016

Rating:

Product code: 423666

Availability: running out

Dispatched within: 14 days

Delivery: The price does not include any possible payment costs check the delivery methods

Price: €1,847.91 1847.91

Net price: €1,502.36

quantity pcs.

add to wish list

product unavailable

ask about product
add your review

Description

The Lenergizee BUSINESS is equipped with the open communication protocol OCPP 1.6 J, which allows integration with various charging service operators. This allows for station management and electricity billing - this means that the device can be a public charging station within the meaning of the Electromobility and Alternative Fuels Act. An additional requirement is the registration and submission of data to the Alternative Fuels Infrastructure Register (EIPA) and the ongoing updating of station information, as required by the Act.

Lenergizee BUSINESS provides a comprehensive solution for charging electric vehicles in a variety of public and business locations, ensuring the safety, convenience, control and efficiency of the charging infrastructure. Intended use: corporate car parks, office complexes, hotels, restaurants, shops/retail facilities, ev car service/dealers, fitness clubs, offices, public places, charging station operators.

Files to download:

Description

Technical data

Charging power [kW]	22.00
Electrical protection class	I
Material of the body	ABS, steel
Colour of the body	white RAL9016 matt
Impact resistance	IK10
Ingress protection	IP54
Mounting version	wall-mounted
Working temperature [°C]	from -25 to +45
Plug type	type 2
Wire type	no
Protection type	RCCB (residual current circuit breaker) type A. MCB (overcurrent) 32A 3P, surge protection SPD TYPE 2
CE certificate	20/2024
Frequency [Hz]	50-60
Warranty [years]	2
Sockets	1
Number on the palette [pcs]	36
Gross weight [kg]	0
Net weight [kg]	5.000
Dimensions of single box [mm]	204/395/395
Dimensions (H/W/T/S) [mm]	290/300/190
Mounting dimensions [mm]	149/85
Surge protection [kV]	2
Version	BUSINESS OCPP
Vandalproof	Yes
AC voltage range [V]	3 x 400
Socket type	type 2
Additional accessories	Leg, wall protection, anti-vandalism
The number of implement units	1
Charging mode	3
Number of phases	1 or 3
Rated current (A)	32
Maximum charging current: [A]	32
Cross-section of the power cable [mm2]	from 6 to 10
Number of connectors	1
Zintegrowany licznik energii	Yes
Zintegrowany licznik energii MID	Yes
Network layout	TN-TT (single-phase and three-phase)
EMC class	B (residential, business areas, commercial)
Charging power regulation	od 2.3 do 7.4 kW przy 1 faza <br> od 6.9 do 22kW przy 3 fazach (sieć TN)
Pomiar poboru mocy	No
Power consumption in standby [W]	2.80
Loading losses [%]	0.30
Overvoltage category	external protection required - TYPE II
Integrated security	protection against short circuit to ground. protection against the effects of interrupted communication between the car and the wallbox
Storage temperature [degrees C]	from -40 to +50
Communication lighting	LEDs in 3 colors: blue. green, red. Description in the manual.
Authorization	RFID
Harmonogram ładowania	No
Management application	no
Destiny	inwards, outwards
Blend color	black RAL 9005
The way of painting	powder
Type of housing finish	mat
Power cord entry	Stuffing box from below. Gland on the back wall.
Compliance with standards	LVD 2014/35/EU. 2014/30/EU, 2015/863/EU, 2014/53/EU, PN-EN IEC 61851-1: 2019-10, EN IEC 61851-1: 2019, PN-EN IEC 61851-21-2: 2021- -09, EN IEC 61851-21-2: 2021, PN-EN IEC 61439-7:2020:10, EN IEC 61439-7:2020, PN-EN IEC 62196-1: 2023-07, EN IEC 62196-1: 20
External security required	RCCB (residual current circuit breaker) type A. MCB (overcurrent) 16A 3P
Charging power	22kW 3 phases
Color	white RAL9016
Cable and plug type 2	No
Socket type 2	Yes
Socket 230 [V]	No
RFID authentication	Yes
Application authentication	No
Terminal box	No
Foundation	No
OCPP	Yes
Dynamic power balancing	No
Integrated energy meter MID	No
Dimensions [H/W/D]	290/300/190
Impact resistance	IK10
Type of housing finish	matt
Application	internal, external
Body material	Steel
Warranty [years]	2
