SET LENERGIZEE HOME RFID 22kW socket graphite matt RAL7016 ON LED + TERMINAL BOX
0
product unavailable
Bundled products
To add bundle to the basket, select all the required variants of each item.
LENERGIZEE HOME BASIC 22kW socket graphite mat RAL7016
see gallery (5)
Vendor: lenergizee
Quantity in bundle: 1 pcs.
The price of product outside the bundle €428.37
Cheaper in the bundle!The Lenergizee HOME BASIC charger has been designed with simplicity in mind, allowing the charging process to start automatically when the cable is plugged into the car - a Plug & Charge solution. Thanks to its intuitive operation, using this model is extremely easy.
It is not only a practical device, but also an element supporting sustainable development by promoting eco-friendly transport solutions. For users wishing to charge their car at home, this is a key device, facilitating the free use of electric vehicles, enabling them to charge comfortably and efficiently in their own garage or on their property.
The Lenergizee Home charger has been developed with home users in mind, offering convenient charging of electric vehicles in the comfort of the home environment. It is ideal for EV owners who want easy access to charging. With Lenergizee Home, users can charge their EVs conveniently, eliminating the need for frequent visits to charging stations. This saves time and allows the vehicle to be charged while stationary, especially during a night's rest. Purpose: private homes and enclosed spaces. The charger is resistant to harsh weather conditions and can therefore be installed both indoors and outdoors.
LENERGIZEE charger leg graphite black RAL7016/9005 mat + TERMINAL BOX
see gallery (3)
Vendor: lenergizee
Quantity in bundle: 1 pcs.
The price of product outside the bundle €453.72
Cheaper in the bundle!Dedicated leg for Lenergizee loader with a height of 1500mm. Features high IK10 mechanical protection and IP54 waterproofing. Fits all Lenergizee chargers with socket or built-in cable. The top bracket provides the ability to wind the cable onto the housing. Hole spacing for 170-200mm foundation. Recommended foundation B-50 is available in our offer.
The terminal box used in the leg greatly simplifies the installation of the charger, with a flexible cable directly connecting the terminal box to the charger. In addition, during installation you don't have to worry about ensuring that there is enough cable coming out of the ground. The box in which the terminal is located allows the use of a gland with a maximum size of M32, so the customer can have power cables of different diameters.
Description

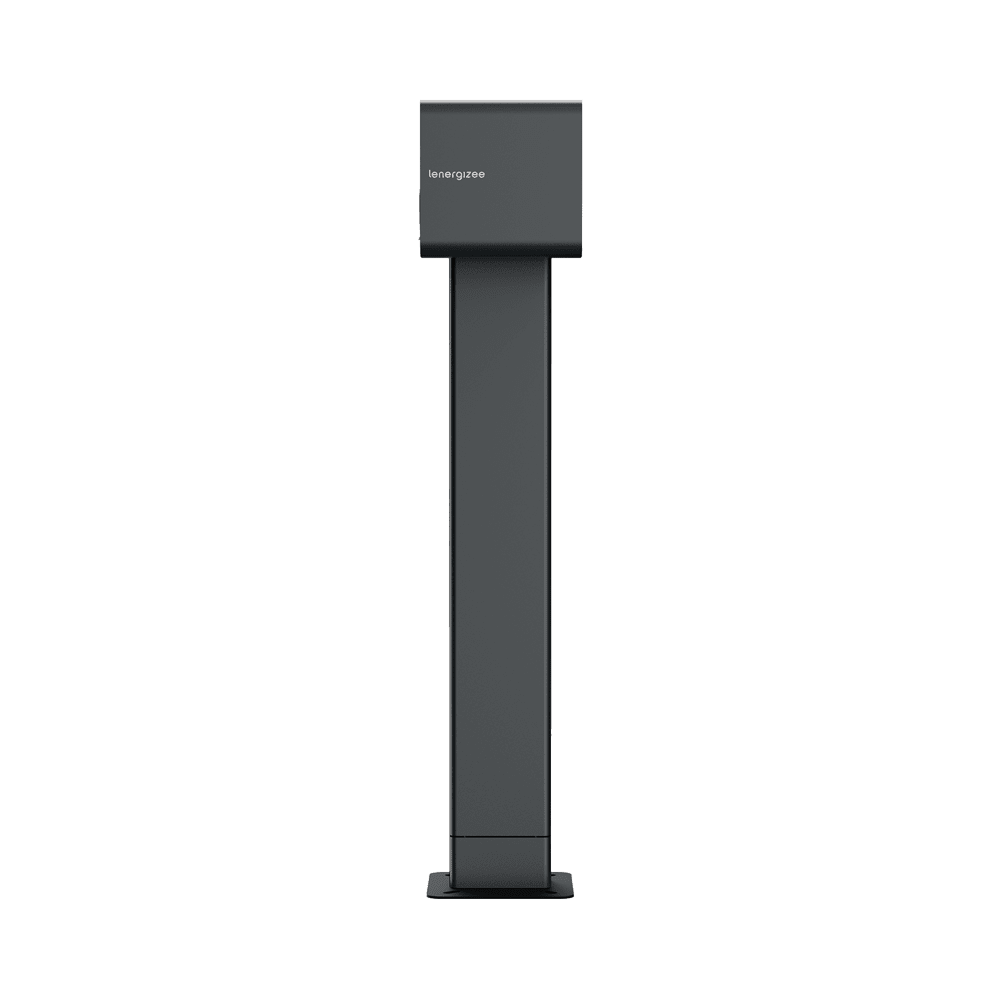

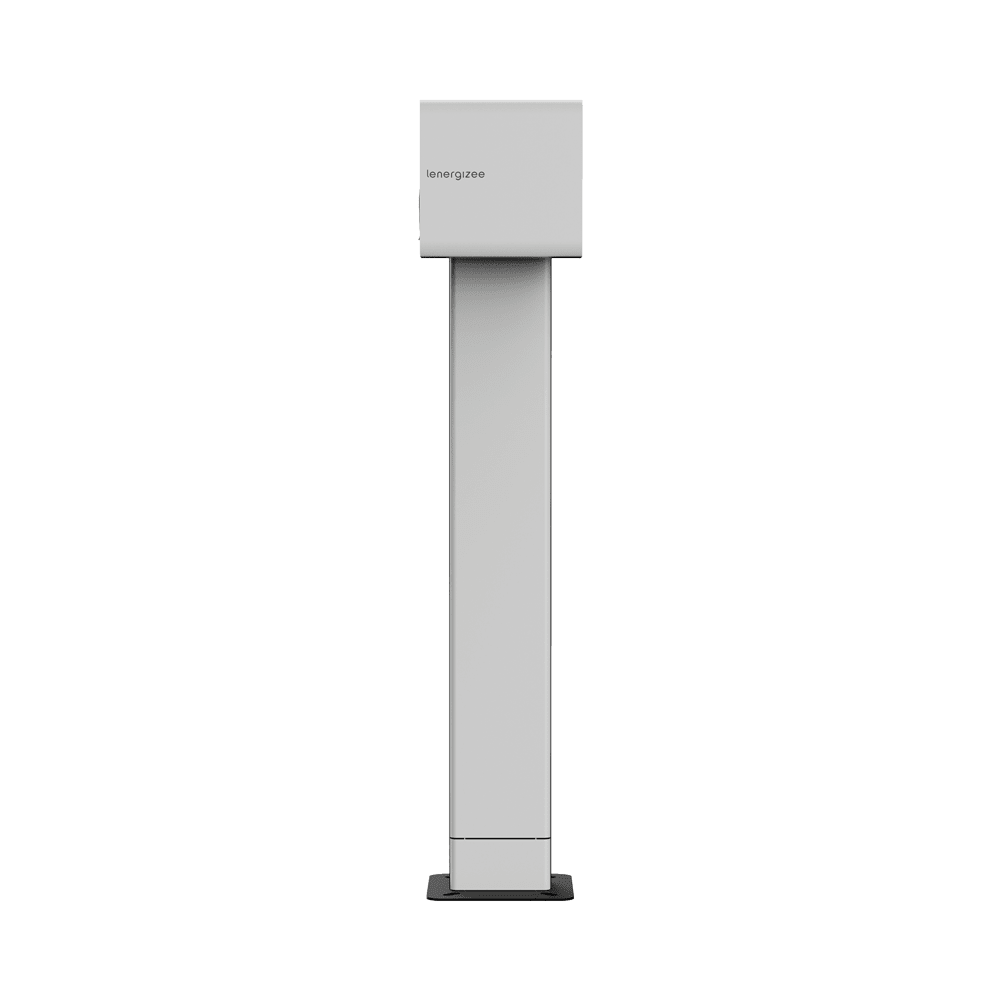

The Lenergizee HOME RFID charging station is equipped with a module for authorising the charging process with an RFID card. This version includes an integrated RFID module and 5 authorisation cards. The charging process starts automatically when the cable is connected and the RFID card is scanned, so it is very simple and intuitive, and additionally protects the charger from unwanted use by outsiders.
The terminal box used in the leg significantly simplifies the installation of the charger, with a flexible cable directly connecting the terminal box to the charger. In addition, there is no need to worry about ensuring that there is enough cable coming out of the ground during installation. The box in which the terminal box is located allows the use of a gland with a maximum size of M32, so the customer can have power cables of different diameters.
The Lenergizee Home RFID kit offers convenience, reliability and simple operation, allowing electric vehicles to be charged in private homes and garage halls in an efficient, safe and customised way. The charger is resistant to harsh weather conditions and can therefore be installed both indoors and outdoors.
Description
Technical data
| Charging power [kW] | 22.00 |
| Electrical protection class | I |
| Material of the body | ABS, steel |
| Colour of the body | graphite RAL7016 matt |
| Impact resistance | IK10 |
| Ingress protection | IP54 |
| Working temperature [°C] | from -40 to +50 |
| Plug type | type 2 |
| Wire type | no |
| Protection type | RCCB (residual current circuit breaker) type A. MCB (overcurrent) 32A 3P, surge protection SPD TYPE 2 |
| CE certificate | 11/2024 |
| Frequency [Hz] | 50-60 |
| Warranty [years] | 2 |
| Sockets | 1 |
| Number on the palette [pcs] | 36 |
| Gross weight [kg] | 0 |
| Net weight [kg] | 23.000 |
| Dimensions (H/W/T/S) [mm] | 1496/299/377 |
| Surge protection [kV] | 2 |
| Version | Home RFID |
| Vandalproof | No |
| AC voltage range [V] | 3 x 400 |
| Socket type | type 2 |
| Additional accessories | Leg, wall protection, anti-vandalism |
| Charging mode | 3 |
| Number of phases | 1 or 3 |
| Rated current (A) | 32 |
| Maximum charging current: [A] | 32 |
| Cross-section of the power cable [mm2] | from 6 to 10 |
| Number of connectors | 1 |
| Zintegrowany licznik energii | No |
| Zintegrowany licznik energii MID | No |
| Charging power regulation | od 2.3 do 7.4 kW przy 1 faza <br> od 6.9 do 22kW przy 3 fazach (sieć TN) |
| Pomiar poboru mocy | No |
| Power consumption in standby [W] | 2.00 |
| Loading losses [%] | 0.30 |
| Overvoltage category | external protection required - TYPE II |
| Integrated security | protection against short circuit to ground. protection against the effects of interrupted communication between the car and the wallbox |
| Storage temperature [degrees C] | from -40 to +50 |
| Communication lighting | LEDs in 3 colors: blue. green, red. Description in the manual. |
| Authorization | RFID |
| Harmonogram ładowania | No |
| Management application | no |
| Destiny | inwards, outwards |
| Blend color | black RAL 9005 |
| The way of painting | powder |
| Type of housing finish | mat |
| Power cord entry | Stuffing box from below. Gland on the back wall. |
| Compliance with standards | LVD 2014/35/EU. 2014/30/EU, 2015/863/EU, 2014/53/EU, PN-EN IEC 61851-1: 2019-10, EN IEC 61851-1: 2019, PN-EN IEC 61851-21-2: 2021- -09, EN IEC 61851-21-2: 2021, PN-EN IEC 61439-7:2020:10, EN IEC 61439-7:2020, PN-EN IEC 62196-1: 2023-07, EN IEC 62196-1: 20 |
| External security required | RCCB (residual current circuit breaker) type A. MCB (overcurrent) 16A 3P |
| Charging power | 22kW 3 phases |
| Color | graphite RAL7016 |
| Cable and plug type 2 | No |
| Socket type 2 | Yes |
| Socket 230 [V] | No |
| RFID authentication | Yes |
| Application authentication | No |
| Terminal box | Yes |
| Foundation | No |
| OCPP | No |
| Dynamic power balancing | No |
| Integrated energy meter MID | No |
| Dimensions [H/W/D] | 290/300/190 |
| Impact resistance | IK10 |
| Type of housing finish | matt |
| Application | internal, external |
| Body material | Steel |
| Warranty [years] | 2 |
