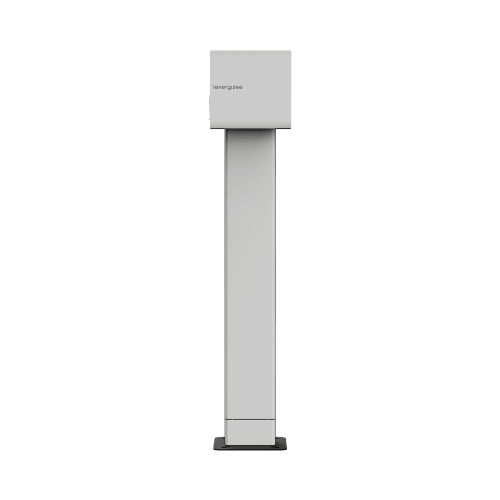

SET LENERGIZEE HOME RFID 11kW socket grey matt RAL7047 ON LEG
0
product unavailable
Bundled products
To add bundle to the basket, select all the required variants of each item.
LENERGIZEE HOME RFID 11kW socket grey mat RAL7047
see gallery (5)
Vendor: lenergizee
Quantity in bundle: 1 pcs.
The price of product outside the bundle €519.07
Cheaper in the bundle!The Lenergizee HOME RFID charger is equipped with a module for authorising the charging process with an RFID card. This version includes an integrated RFID module and 5 authorisation cards. The charging process starts automatically when the cable is connected and the RFID card is scanned, so it is very simple and intuitive, and additionally protects the charger from unwanted use by outsiders.
Lenergizee Home RFID offers convenience, reliability and simple operation, allowing electric vehicles to be charged in private homes and garage halls in an efficient, safe and customised way. The charger is resistant to harsh weather conditions and can therefore be installed both indoors and outdoors.
LENERGIZEE charger leg grey, black RAL7047/9005 matte
see gallery (3)
Vendor: lenergizee
Quantity in bundle: 1 pcs.
The price of product outside the bundle €336.28
Cheaper in the bundle!Dedicated leg for Lenergizee loader with a height of 1500mm. Features high IK10 mechanical protection and IP54 waterproofing. Fits all Lenergizee chargers with socket or built-in cable. The top bracket provides the ability to wind the cable onto the housing. Hole spacing for 170-200mm foundation. Recommended foundation B-50 is available in our offer.
Description
The Lenergizee HOME RFID charging station is equipped with a module for authorising the charging process with an RFID card. This version includes an integrated RFID module and 5 authorisation cards. The charging process starts automatically when the cable is connected and the RFID card is scanned, so it is very simple and intuitive, and additionally protects the charger from unwanted use by outsiders.
The Lenergizee Home RFID kit offers convenience, reliability and simple operation, allowing electric vehicles to be charged in private homes and garage halls in an efficient, safe and customised way. The charger is resistant to harsh weather conditions and can therefore be installed both indoors and outdoors.
Description
Technical data
| Charging power [kW] | 11.00 |
| Electrical protection class | I |
| Material of the body | ABS, steel |
| Colour of the body | gray RAL7047 matt |
| Impact resistance | IK10 |
| Ingress protection | IP54 |
| Working temperature [°C] | from -40 to +50 |
| Plug type | type 2 |
| Wire type | no |
| Protection type | RCCB (residual current circuit breaker) type A. MCB (overcurrent) 16A 3P. SPD overvoltage protection TYPE 2 (not included) |
| CE certificate | 11/2024 |
| Frequency [Hz] | 50-60 |
| Warranty [years] | 2 |
| Sockets | 1 |
| Number on the palette [pcs] | 36 |
| Net weight [kg] | 21.600 |
| Dimensions (H/W/T/S) [mm] | 1496/299/377 |
| Surge protection [kV] | 2 |
| Version | Home RFID |
| Vandalproof | No |
| AC voltage range [V] | 3 x 400 |
| Socket type | type 2 |
| Additional accessories | Leg, wall protection, anti-vandalism |
| Charging mode | 3 |
| Number of phases | 1 or 3 |
| Rated current (A) | 16 |
| Maximum charging current: [A] | 16 |
| Cross-section of the power cable [mm2] | from 6 to 10 |
| Number of connectors | 1 |
| Zintegrowany licznik energii | No |
| Zintegrowany licznik energii MID | No |
| Network layout | TN-TT (single-phase and three-phase) |
| EMC class | B (residential, business areas, commercial) |
| Charging power regulation | od 2.3 do 3.6 kW przy 1 faza <br> od 6.9 do 11kW przy 3 fazach (sieć TN) |
| Pomiar poboru mocy | No |
| Power consumption in standby [W] | 2.00 |
| Loading losses [%] | 0.30 |
| Overvoltage category | external protection required - TYPE II |
| Integrated security | protection against short circuit to ground. protection against the effects of interrupted communication between the car and the wallbox |
| Storage temperature [degrees C] | from -40 to +50 |
| Communication lighting | LEDs in 3 colors: blue. green, red. Description in the manual. |
| Authorization | RFID |
| Harmonogram ładowania | No |
| Management application | no |
| Destiny | inwards, outwards |
| Blend color | black RAL 9005 |
| The way of painting | powder |
| Type of housing finish | mat |
| Power cord entry | Stuffing box from below. Gland on the back wall. |
| Compliance with standards | LVD 2014/35/EU. 2014/30/EU, 2015/863/EU, 2014/53/EU, PN-EN IEC 61851-1: 2019-10, EN IEC 61851-1: 2019, PN-EN IEC 61851-21-2: 2021- -09, EN IEC 61851-21-2: 2021, PN-EN IEC 61439-7:2020:10, EN IEC 61439-7:2020, PN-EN IEC 62196-1: 2023-07, EN IEC 62196-1: 20 |
| External security required | RCCB (residual current circuit breaker) type A. MCB (overcurrent) 16A 3P |
| Charging power | 11kW 3 phases |
| Color | grey RAL7047 |
| Cable and plug type 2 | No |
| Socket type 2 | Yes |
| Socket 230 [V] | No |
| RFID authentication | Yes |
| Application authentication | No |
| Terminal box | No |
| Foundation | No |
| OCPP | No |
| Dynamic power balancing | No |
| Integrated energy meter MID | No |
| Dimensions [H/W/D] | 290/300/190 |
| Impact resistance | IK10 |
| Type of housing finish | matt |
| Application | internal, external |
| Body material | Steel |
| Warranty [years] | 2 |
