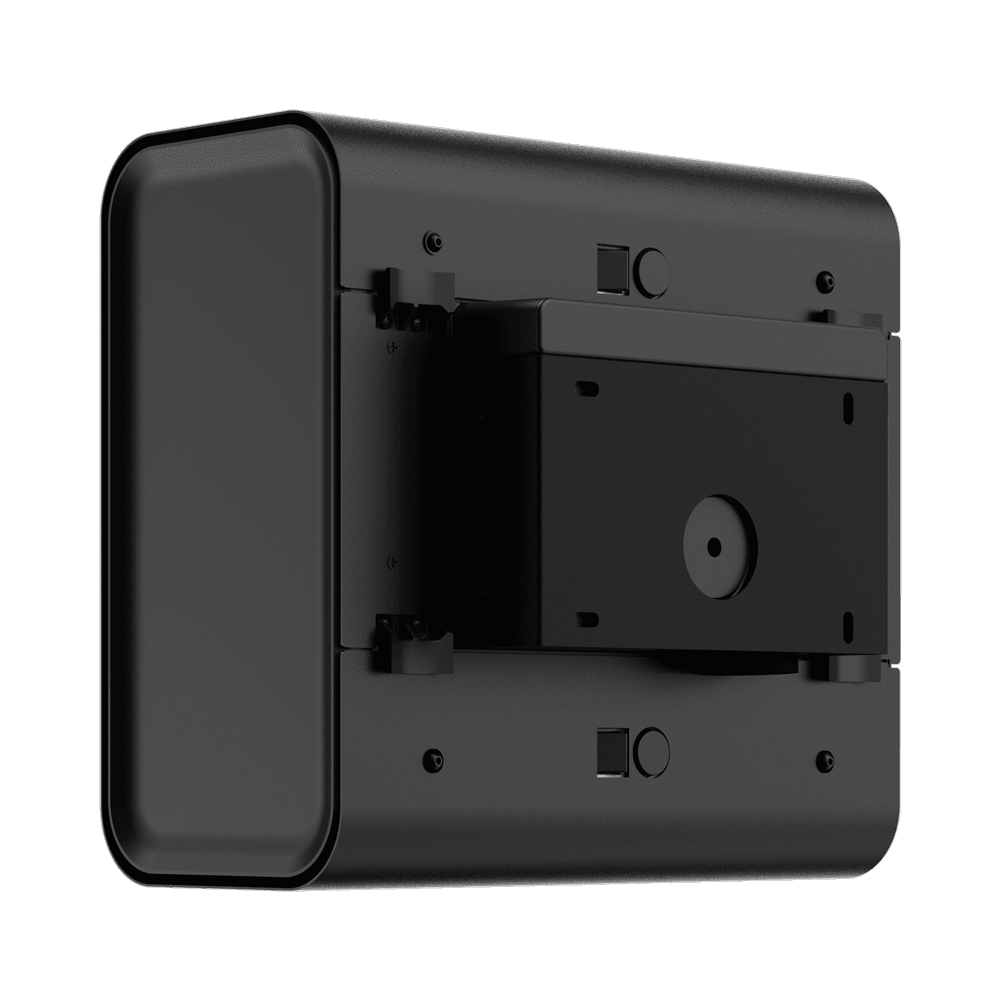

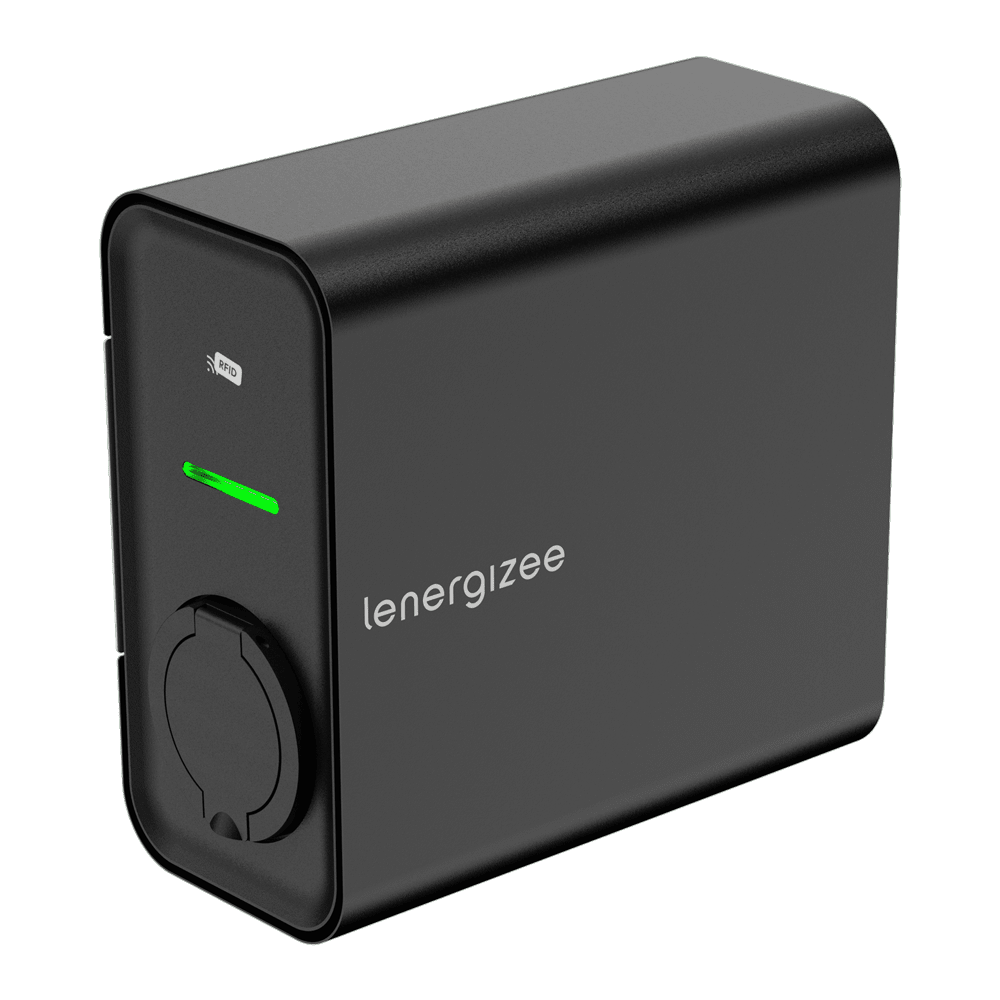

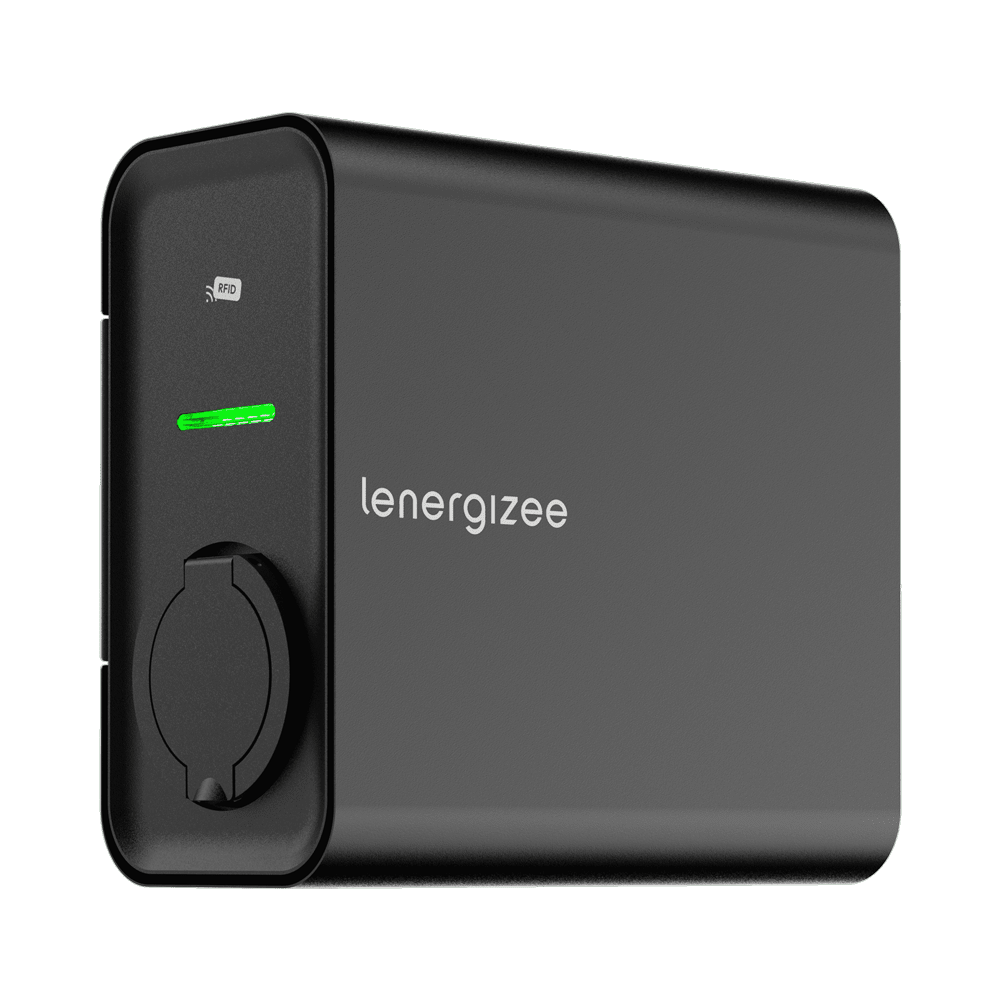

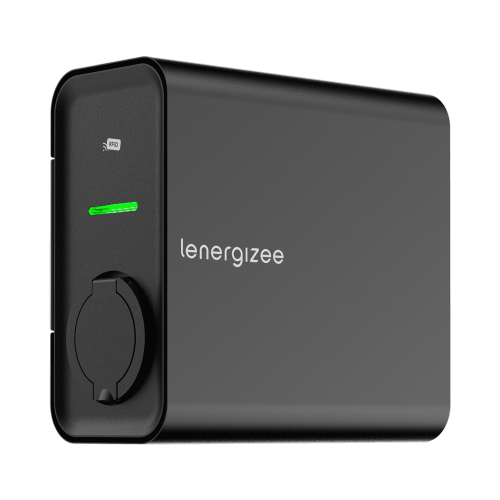

LENERGIZEE BUSINESS PREMIUM OCPP 22kW socket black mat RAL9005
0
product unavailable
Description
The Lenergizee BUSINESS is equipped with the open communication protocol OCPP 1.6 J, which allows integration with various charging service operators. This allows for station management and electricity billing - this means that the device can be a public charging station within the meaning of the Electromobility and Alternative Fuels Act. An additional requirement is the registration and submission of data to the Alternative Fuels Infrastructure Register (EIPA) and the ongoing updating of station information, as required by the Act.
Lenergizee BUSINESS provides a comprehensive solution for charging electric vehicles in a variety of public and business locations, ensuring the safety, convenience, control and efficiency of the charging infrastructure. Intended use: corporate car parks, office complexes, hotels, restaurants, shops/retail facilities, ev car service/dealers, fitness clubs, offices, public places, charging station operators.
Description
Technical data
| Electrical protection class | I |
| Material of the body | ABS, steel |
| Colour of the body | black RAL9005 matt |
| Impact resistance | IK10 |
| Ingress protection | IP54 |
| Mounting version | wall-mounted |
| Working temperature [°C] | from -25 to +45 |
| Wire type | no |
| Protection type | RCCB (residual current circuit breaker) type A. MCB (overcurrent) 32A 3P, surge protection SPD TYPE 2 |
| CE certificate | 20/2024 |
| Frequency [Hz] | 50-60 |
| Warranty [years] | 2 |
| Sockets | 1 |
| Number on the palette [pcs] | 36 |
| Net weight [kg] | 5.000 |
| Dimensions of single box [mm] | 204/395/395 |
| Dimensions (H/W/T/S) [mm] | 290/300/190 |
| Mounting dimensions [mm] | 149/85 |
| Surge protection [kV] | 2 |
| Version | BUSINESS OCPP |
| Vandalproof | Yes |
| AC voltage range [V] | 3 x 230 |
| Socket type | type 2 |
| The number of implement units | 1 |
| Charging mode | 3 |
| Number of phases | 1 or 3 |
| Rated current (A) | 32 |
| Maximum charging current: [A] | 32 |
| Cross-section of the power cable [mm2] | from 6 to 10 |
| Number of connectors | 1 |
| Zintegrowany licznik energii | Yes |
| Zintegrowany licznik energii MID | Yes |
| Network layout | TN-TT (single-phase and three-phase) |
| EMC class | B (residential, business areas, commercial) |
| Charging power regulation | od 2.3 do 7.4 kW przy 1 faza od 6.9 do 22kW przy 3 fazach (sieć TN) |
| Pomiar poboru mocy | No |
| Power consumption in standby [W] | 2.80 |
| Loading losses [%] | 0.30 |
| Overvoltage category | external protection required - TYPE II |
| Integrated security | protection against short circuit to ground. protection against the effects of interrupted communication between the car and the wallbox |
| Storage temperature [degrees C] | from -40 to +50 |
| Communication lighting | LEDs in 3 colors: blue. green, red. Description in the manual. |
| Authorization | RFID |
| Harmonogram ładowania | No |
| Management application | no |
| Destiny | inwards, outwards |
| Blend color | black RAL 9005 |
| The way of painting | powder |
| Type of housing finish | mat |
| Power cord entry | Stuffing box from below. Gland on the back wall. |
| Compliance with standards | LVD 2014/35/EU. 2014/30/EU, 2015/863/EU, 2014/53/EU, PN-EN IEC 61851-1: 2019-10, EN IEC 61851-1: 2019, PN-EN IEC 61851-21-2: 2021- -09, EN IEC 61851-21-2: 2021, PN-EN IEC 61439-7:2020:10, EN IEC 61439-7:2020, PN-EN IEC 62196-1: 2023-07, EN IEC 62196-1: 20 |
| External security required | RCCB (residual current circuit breaker) type A. MCB (overcurrent) 32A 3P |
